Achios-X Observer
State-of-the-art microscopes for advanced Life Science applications
Experience optimal comfort and cutting-edge performance with the Achios-X Observer, an ergonomic masterpiece featuring a state-of-the-art optical system. Tailored to meet the demands of advanced Life Science applications such as cytology and anatomopathology
Product Detail
Achios-X Observer
State-of-the-art microscopes for advanced Life Science applications
Experience optimal comfort and cutting-edge performance with the Achios-X Observer, an ergonomic masterpiece featuring a state-of-the-art optical system. Tailored to meet the demands of advanced Life Science applications such as cytology and anatomopathology
Highlights
- Extra Wide field WF 10x/22 mm, Ø 30 mm
- Revolving quintuple or sextuple reversed nosepiece
- Infinity corrected 60 mm achromatic Plan, Plan Phase objectives
- Plan Semi-Apochromatic EIS objectives
- Low positioned stage adjustment knobs
- 3 W NeoLED with adjustable color temperature
- Smart Light Control (SLC)
MODELS
Sixtuple nosepiece is also availableÂ
Some models are also available as in vitro diagnostic medical devices class A – (EU) 2017/746
Contact your Euromex dealer
EYEPIECE
With an extended field of view of 22 mm, the Achios-X Observer proves its usefulness by reducing the need of moving the specimen over the stage, which is highly appreciated in demanding applications
HEADS
An impressive line of heads to choose from:
Apart from the standard Siedentopf trinocular with 30° inclined tubes, there is the optional ergonomic tilting head (0° – 35°), the face-to-face dual head and last but not least,  multi-head systems with 2, 3 or 5 heads
OBJECTIVES
The Achios-X observer comes with Infinity corrected achromatic Plan, Plan Phase or Plan Semi-Apochromatic EIS objectives and are 60 mm parfocal and have a M25 mounting thread
STAGE
The Achios-X Observer comes complete with a generously sized, hard coated, rackless mechanical stage, meticulously designed for enhanced safety. Free from any sharp edges protruding from the microscope’s sides, this stage ensures a secure and worry-free experience. Suitable for two slides and allows single handed placement of slides
CONDENSERS
Depending the configuration, the Achios-X Observer is supplied with
- Standard Abbe Condenser

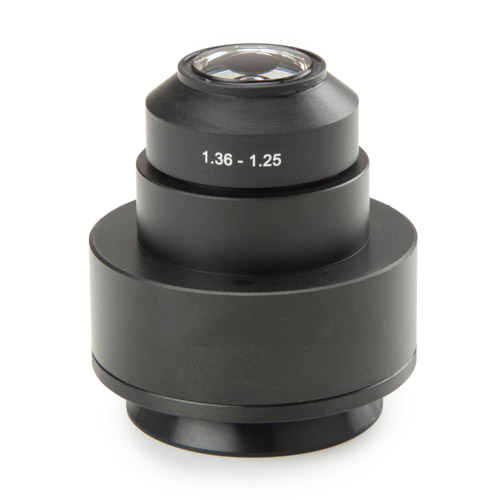

- Zernike phase condenser includes telescope and green filter
- Swing-out Abbe Condenser
- Dark field condenser (Dry)
- Dark field condenser (Oil)
ILLUMINATION
The Köhler illumination of the Achios-X Observer provides the most uniformly illuminated and bright field of view
NOSEPIECE
Experience the ease of an intuitive quintuple or an optional sixtuple nosepiece on ball- bearings, equipped with gripped ring for effortless and precise rotation
LIGHT AND COLOR TEMPERATURE CONTROLÂ
The Achios-X Observer introduces Smart Light Control. This intelligent function memorizes the light intensity level for each objective. The color temperature of the NeoLED light source can be adjusted and stored. This innovation not only heightens comfort but also saves valuable time during routine magnification shifts. The eco-friendly NeoLED light source is both environmentally conscious and built  to endure
CSS – CABLE  STORAGE SYSTEM
Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage
CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope
NEOLED
The innovative NeoLEDâ„¢ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain four main benefits:
- More oblique light from the NeoLEDâ„¢ light source can be captured, which increases the light output significantly
- Less energy is required to achieve this level of light intensity
- The larger aperture of NeoLEDâ„¢ allows the optical system of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics
- Super long life span, up to 50.000 hrs nominal, L70 norm
PACKAGING
Supplied with power cord, dust cover, screwdriver, user manual and 5 ml immersion oil for models supplied with a 100x objective

Ergonomical Siedentopf trinocular head with tilting tubes ADD-ON option for Achios-X observer. Only with the purchase of new microscopes Add the AX.5700-ADD price to a Achios-X Observer model in order to have the prices of a configuration with ergo titilng head and order the microscope as AX.1158-xxxx / AX.3158-xxxx

Nosepiece for 6 objectives ADD-ON option for Achios-X Observer. Only available with the purchase of a new microscope (objectives not included)

Face to Face attachment, 2 heads ADD-ON option for Achios-X Observer. Only available with the purchase of a new standard microscope

Face to Face attachment, 2 heads for Achios-X Observer

Multi head, 2 heads ADD-ON option. Only available with the purchase of a new standard microscope. Add the AX.5602-ADD price to a Achios-X Observer model in order to have the prices of a configuration with ergo titilng head and order the microscope as AX.1158/2 or AX.3158/2

Multi head 2 heads attachement for Achios-X Observer

Multi head, 3 heads ADD-ON option. Only available with the purchase of a new standard microscope. Add the AX.5603-ADD price to a Achios-X Observer model in order to have the prices of a configuration with ergo titilng head and order the microscope as AX.1158/3 or AX.3158/3

Multi head 3 heads attachment for Achios-X Observer

Multi head, 5 heads ADD-ON option. Only available with the purchase of a new standard microscope. Add the AX.5605-ADD price to a Achios-X Observer model in order to have the prices of a configuration with ergo titilng head and order the microscope as AX.1158/5 or AX.3158/5

Multi head 5 heads attachment for Achios-X Observer

EWF 10x/25 mm eyepiece for Achios-X observer. With dioptrie adjustment

Infinity EIS 60 mm Plan PLi S50x/0.95 oil objective. M25 thread. Working distance 0.19 mm

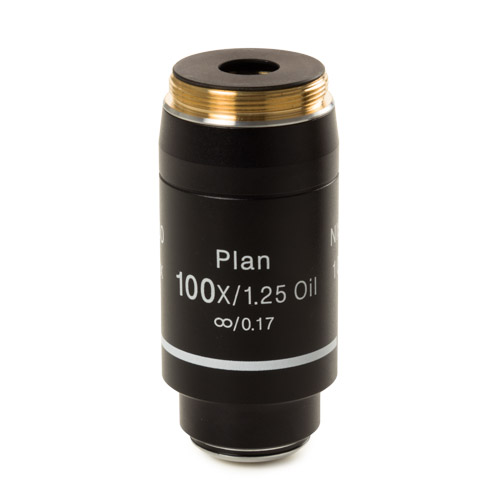

Infinity EIS 60 mm Plan PLi S100x/1.25 oil-immersion objective, M25 thread. Working distance 0.3 mm

Infinity EIS 60 mm Plan Semi-Apochromatic PLi-Apo Fluarex 4x/0.15 objective, M25 thread. Working distance 0.17 mm

Infinity EIS 60 mm Plan Semi-Apochromatic PLi-Apo Fluarex 10x/0.3 objective, M25 thread. Working distance 15.8 mm

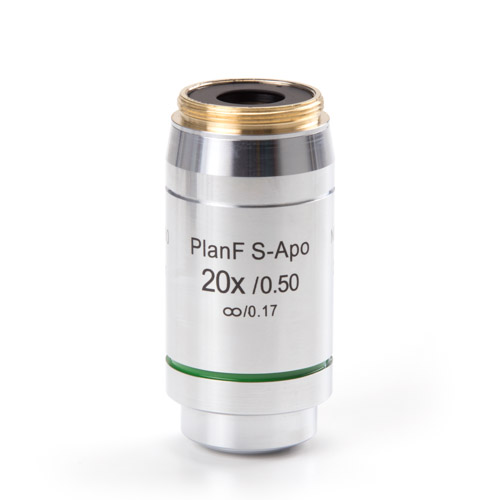

Infinity EIS 60 mm Plan Semi-Apochromatic PLi-Apo Fluarex 20x/0.5 objective, M25 thread. Working distance 2.7 mm

Infinity EIS 60 mm Plan Semi-Apochromatic PLi-Apo Fluarex S40x/0.75 objective, M25 thread. Working distance 1.35

Infinity EIS 60 mm Plan Semi-Apochromatic PLi-Apo Fluarex S100x/1.25 oil-immersion objective, M25 thread. Working distance 0.18 mm

Infinity EIS 60 mm Plan Phase contrast PLPHi 10x/0,25 objective, M25 thread. Working distance 10,2 mm

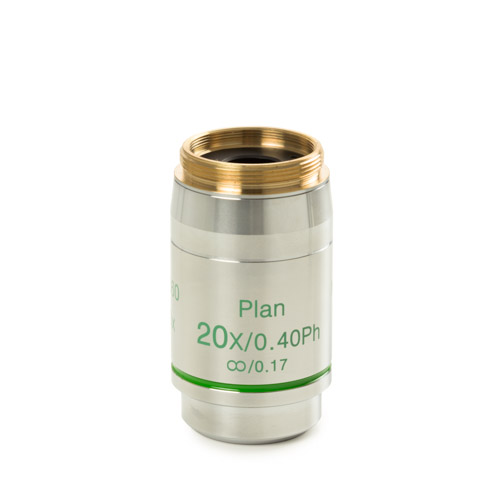

Infinity EIS 60 mm Plan Phase contrast PLPHi 20x/0,40 objective, M25 thread. Working distance 13,36 mm

Infinity EIS 60 mm Plan Phase contrast PLPHi 40x/0,65 objective, M25 thread. Working distance 0,7 mm

Infinity EIS 60 mm Plan Phase contrast PLPHi 100x/1.25 oil immersion objective, M25 thread. Working distance 0,22 mm

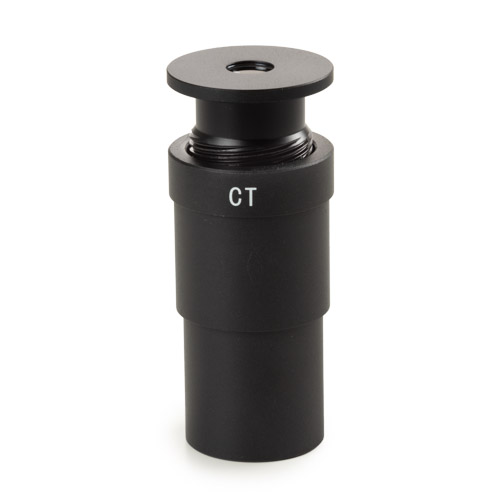

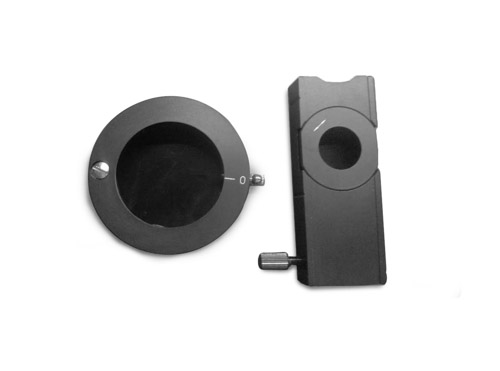

Zernike phase contrast set. Includes Zernike phase condenser and PLPHi 10/20/S40/S100-oil immersion objectives, telescope and green filter

Green filter

C-mount adapter 0,5x
